WinkyLink - WLONYX1800
Smart Choice for Next-Gen Networks
The WLONYX1800 combines advanced fiber optics and Wi-Fi 6 technology to deliver high-speed Internet, stable wireless coverage, and triple-play services (Internet, Voice, and TV) in a single device. Designed for FTTH (Fiber-to-the-Home) scenarios, it is compact, efficient, and operator-friendly.
Key Features
- Size: 260 × 160 × 50 mm, Weight: 460 g
- Power Supply: 12V DC, 1.5A (<10W)
- Optical: Class B+, SC/APC, TX: 0.5–4 dBm, RX: –28 dBm, Distance: 0–20 km
- Wireless: Wi-Fi 6 (802.11ax), dual-band, AX1800, 2T2R external antennas
- Interfaces: 4× RJ45 Gigabit LAN, 1× RJ11 VoIP, 1× USB, 1× SC/APC Fiber PON, DC Power
- Voice: SIP protocol, codecs G.711/G.723/G.726/G.729, GR-909 compliant
Hardware Features
The WLONYX1800 brings together advanced fiber optics and Wi-Fi 6 technology in a compact, reliable design. It delivers powerful hardware features that support high-speed Internet, stable wireless coverage, triple-play services, and long-distance FTTH connectivity. Built to meet the demands of modern homes and businesses, this ONU is engineered for performance, efficiency, and flexibility.
| Optical Signal Access | 1 × GPON/EPON (SC/APC, Class B+) |
|---|---|
| User Interfaces |

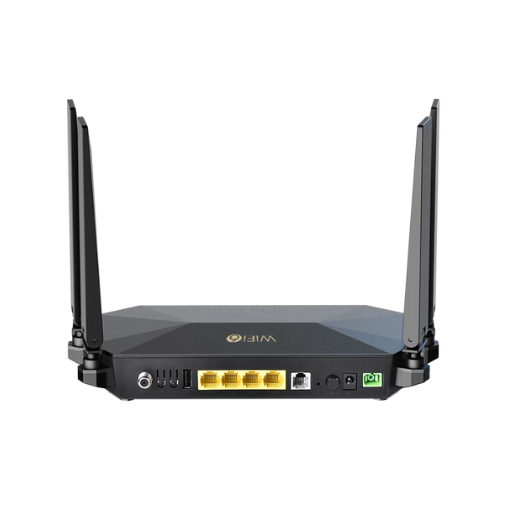

RJ45 Gigabit LAN (4x), RJ11 VoIP (1x), USB port (1x), SC/APC Fiber port, DC Power jack |
| Buttons | Power switch, Reset, WLAN, WPS |
| LED Indicators | POWER, PON, LOS, LAN1–LAN4, TEL1, USB, 2.4G, 5G, WPS |
| Power Supply | Input: 100–240V AC, 50–60Hz → Output: 12V DC, 1.5A |
| Power Consumption | < 10 W |
| Operating Temperature | –10°C ~ +45°C |
| Humidity | 5% – 95% (Non-condensing) |
| Weight | 460 g |
| Size | 260 × 160 × 50 mm |
*** Explore the complete technical details in our full product catalog. [ Download ]
Software Features
The WLONYX1800 is equipped with powerful software features that ensure seamless network performance, advanced management, and secure connectivity. From flexible EPON/GPON compatibility to robust security and QoS, this ONU delivers the intelligence required for modern FTTH environments.
| EPON/GPON Mode | Auto-switching between EPON and GPON |
|---|---|
| Standards | ITU-T G.984.x, IEEE 802.3ah compliant |
| OMCI/OAM | OMCI (GPON), OAM (EPON) |
| Remote Management | TR-069 remote configuration and maintenance |
*** Explore the complete software details in our full product catalog. [ Download ]
